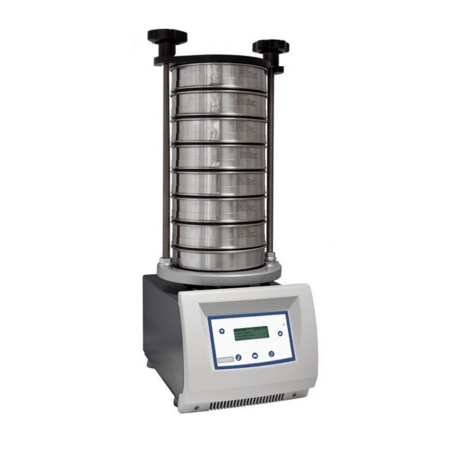

振动筛分机是制药，食品，材料科学等实验室进行物性测试和质量控制必不可少的测试设备，用于测试颗粒的机械性能，物料的混溶性和结合性能，断裂应力测试，食品的感官分析等领域。
* Wiggens的振动筛分机同时有水平和垂直两种振动方式，对样本颗粒形成3D(三维)振动方式，加快了物料振动筛分时间，保证筛分效果，同时可以有效避免物料对筛孔造成阻塞
* 微处理器反馈控制技术，设备会自动根据样品装载量调节输出功率，保证筛分效果，自动记忆一次振动参数设置
* 振动速度0~3500 RPM可调，振动速度调节步进速度为10RPM
* 数字定时功能: 1min-99hr，或者连续运行
* 振动幅度： 3mm，最小筛分颗粒粒径：40 微米，也可以对40微米以下的样品进行湿法工艺筛分
* Wiggens提供两种标准尺寸的振动筛:
* 200 x 50 mm (ISO 3310-1)和200 x 50 mm (ASTM E11)
* 振动筛累加高度：400mm， 包括7个振动筛，一个接收器和一个盖子
* 样品装载量 2Kg
质量标准：
Community directives:2006/42/EC, 2006/95/EC, 2004/108/EC
Standards: EN 61010-1 , EN 61326.
* 设备外形尺寸：28x38x78(WxDxH)
* 重量：17Kg
* 功率：90W
主机订货信息：
| 订货号 | 描述 |
| TA005 | 振动筛分机230-220V/60Hz |
附件选型指南
Standard 3310-2 ( Stainless steel 200 x 50 mm)
| Sieves made in stainless steel 200 x 50 mm | Sieves made in stainless steel 8" (203 x 50 mm) | |||||||||
| Standard ISO 3310-2: Perforated plates | Standard ISO 3310-1: Metalic mesh | Standard ASTM E323: Perforated plates | Standard ASTM E11: Metalic mesh | |||||||
| 订货号 | 孔径 | 订货号 | 孔径 | 订货号 | 孔径 | 订货号 | 孔径 | |||
| PI 065 | 125.00 mm | PI 079 | 8.00 mm | PI 150 | 5" | PI 169 | 3/8" | |||
| PI 069 | 100.00 mm | PI 080 | 6.30 mm | PI 151 | 4,24" | PI 170 | 5/16" | |||
| PI 070 | 80.00 mm | PI 081 | 5.00 mm | PI 152 | 4" | PI 171 | 0.265" | |||
| PI 071 | 63.00 mm | PI 082 | 4.00 mm | PI 153 | 3 1/2" | PI 172 | 1/4" | |||
| PI 072 | 50.00 mm | PI 297 | 3.15 mm | PI 154 | 3" | PI 173 | 3 1/2" | |||
| PI 073 | 40.00 mm | PI 083 | 2.50 mm | PI 155 | 2 1/2" | PI 174 | No. 4 | |||
| PI 074 | 25.00 mm | PI 348 | 2.36 mm | PI 156 | 2.12" | PI 175 | No. 5 | |||
| PI 075 | 20.00 mm | PI 084 | 2.00 mm | PI 157 | 2" | PI 176 | No. 6 | |||
| PI 076 | 16.00 mm | PI 321 | 1.7 mm | PI 158 | 1 3/4" | PI 177 | No. 7 | |||
| PI 077 | 12.50 mm | PI 085 | 1.6 mm | PI 159 | 1 1/2" | PI 178 | No. 8 | |||
| PI 078 | 10.00 mm | PI 086 | 1.25 mm | PI 160 | 1 1/4" | PI 179 | No. 10 | |||
| PI 087 | 1.00 mm | PI 161 | 1.06" | PI 180 | No. 12 | |||||
| PI 088 | 0.80 mm | PI 162 | 1" | PI 182 | No. 16 | |||||
| PI 089 | 0.63 mm | PI 163 | 7/8" | PI 181 | No.14 | |||||
| PI 090 | 0.50 mm | PI 164 | 3/4" | PI 183 | No. 18 | |||||
| PI 091 | 0.40 mm | PI 165 | 5/8" | PI 184 | No. 20 | |||||
| PI 146 | 0.315 mm | PI 166 | 0.53" | PI 185 | No. 25 | |||||
| PI 092 | 0.25 mm | PI 167 | 1/2" | PI 186 | No.30 | |||||
| PI 093 | 0.20 mm | PI 168 | 7/16" | PI 187 | No. 35 | |||||
| PI 094 | 0.16 mm | PI 188 | No. 40 | |||||||
| PI 095 | 0.125 mm | PI 189 | No. 45 | |||||||
| PI 096 | 0.100 mm | PI 190 | No. 50 | |||||||
| PI 097 | 0.080 mm | PI 191 | No. 60 | |||||||
| PI 098 | 0.063 mm | PI 192 | No. 70 | |||||||
| PI 099 | 0.050 mm | PI 193 | No. 80 | |||||||
| PI 100 | 0.040 mm | PI 194 | No. 100 | |||||||
| PI 066 | Receiver | PI 195 | No. 120 | |||||||
| PI 067 | Cover | PI 196 | No. 140 | |||||||
| PI 351 | Receiver wet system | PI 197 | No. 170 | |||||||
| PI 350 | Covert wet system | PI 198 | No. 200 | |||||||
| PI 199 | No. 230 | |||||||||
| PI 200 | No. 270 | |||||||||
| PI 201 | No. 325 | |||||||||
| PI 250 | No. 400 | |||||||||
| PI 202 | Cover | |||||||||
| PI 203 | Receiver | |||||||||
| PI 221 | Cover wet system | |||||||||
| PI 235 | Receiver wet system | |||||||||
