首页制药产品大全实验室仪器及装备试剂、耗材色谱耗材配件湿法装柱机 Wet column packing machine

湿法装柱机 Wet column packing machine

更新时间：2026-03-04

价格：面议

品牌：暂无

型号：暂无

立即询盘

产品详情

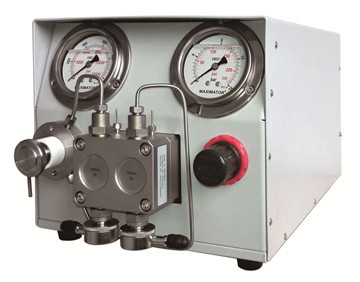

产品名称：湿法装柱机 Wet column packing machine

产品分类：色谱配件／耗材

产品关键词：湿法装柱机 Wet column packing machine

是否为生产商：是

主要销售市场：北美洲,东欧,亚洲,非洲

产品描述：

该设备采用气动增压原理，驱动气体压力为0.1-0.8MPa,压力100MPa,是湿法填充高效液相色谱柱的专用设备。

特点：具有压力高，升压快，脉动小，便携，结构简单，装填、拆卸及维修使用方便，外型美观等特点。

优势：我公司色谱装柱机填装的高效液相色谱柱性能稳定，柱效高，对称性好，是较为理想的装柱设备。并配有不同规格匀浆罐，可填装不同型号的液相色谱柱（如ID4.0mm、ID4.6mm等柱管）适合科研单位小型化研发试制。

Driving gas pressure is 0.6-1.0MPa and the maximum pressure is 100MPa. It is the specified equipment for wet filling HPLC column. The system has the characteristics of high pressure, fast boost, low backpressure, portable, simple structure, easy packing and disassembling, easy maintenance and use, good appearance and so on.

Filling bed height: variable, the range is 100mm-500mm (other specifications need to be customized). Our company’s chromatography column packing machine can pack HPLC column with the steady performance, high column efficiency, good symmetry, and no collapse. It is the ideal equipment for column packing. It is also equipped with different specifications of the joints, to be filled with different types of the liquid chromatography column. It is suitable for scientific research institutions to do miniature research and development trial production.

技术参数

输出压力	≦100Mpa	如需更高压力可定制
输出流量	≦3.3L/min	无负荷情况下流速
适用范围	ID≦50mm色谱柱	柱床高度≦300mm（可定制）
空气消耗	≦1.5Nm³/min	干净压缩空气

Output Pressure	≦100Mpa	For higher pressure, it can be customized
Output flow	≦3.3L/min	Maximum flow rate when no load
Applicable Range	ID≦50mm chromatography column	Column bed height is generally 300 mm
Air consumption	≦1.5Nm3/min	Clean compressed air
4.6mm slurry tank	Volume 40ml	Filling diameter 4.6 mm Column
10mm slurry tank	Volume 100ml	Filling diameter 10 mm Column
20mm slurry tank	Volume 390ml	Filling diameter 20 mm Column
30mm slurry tank	Volume 490ml	Filling diameter 30 mm Column
50mm slurry tank	Volume 1040ml	Filling diameter 50 mm Column

补充信息：

湿法装柱机是实验室中用于色谱柱填充的专业设备，通过匀浆法将固定相均匀装入柱管，确保色谱柱的高效性和重现性。主要应用于制药、生化、食品检测等领域，适用于硅胶、聚合物等填料的装填。注意事项： 1. 操作时需保持填料悬浮液均匀，避免气泡产生； 2. 根据填料性质调整压力（通常＜50 MPa），防止柱床塌陷； 3. 装柱后需用流动相平衡，排除残留溶剂； 4. 定期维护泵密封件及管路，防止泄漏。该设备能显著提升柱效和批次一致性，是制备高效色谱柱的关键工具。

补充信息由AI自动生成，仅供参考。

公司简介

常州瑞曦生物科技有限公司成立于2015年12月，注册资本200万元。是一家为客户提供研发、生产和销售为一体，是一家专注于生命医学产业下游分离纯化解决方案公司。成立一年就被区里评为新增规模企业奖，领军人李忠辉，于2015年被常州市评为“龙城英才”，现任公司总经理。公司新研发的产品是以液相色谱为核心，主要为实验室、药厂、高校、科研机构提供具有分离纯化功能的液相色谱配件以及成套的高智能、全自动化的工业成套设备及生产线。产品主要包括：色谱柱柱管耗材、装柱机、DAC等液相色谱及其周边产品，并可按照客户需求进行个性化的工艺改造及方案订制。同时公司还经营化工项目改造、非标设备的订制等业务。

注册资本：不愿意公开

企业规模（人）： 50至59

业务类型：制造商

成立日期： 2015年

年销售额：不愿意公开

主营产品类别：耗材,实验室仪器及装备,制剂设备

该公司其他产品

动态轴向压缩柱DACDynamic axial compression column DAC

1.装柱时间短，无需二次拆装，可避免传统色谱柱在拆装时柱床反弹影响柱效 2.本公司自主研发设计的流体分配方式保证了分配的均匀性，高效性。 3.活塞头与柱床始终接触并保持装柱压力，避免了传统色谱柱长时间使用后柱床塌陷的问题，延长使用寿命 4.不使用电气零部件，可用于防爆区域(或者可采用使用防爆电机的液压站 1. The column loading time is short, and there is no need for secondary disassembly and assembly, which can avoid the rebound of the column bed during the disassembly and assembly of the traditional chromatographic column, which can affect the column efficiency 2. The fluid distribution method independently developed and designed by the company ensures the uniformity and efficiency of distribution. 3. The piston head is always in contact with the column bed and maintains the column loading pressure, which avoids the problem of column bed collapse after long-term use of the traditional chromatography column and prolongs the service life 4. No electrical parts are used, and can be used in explosion-proof areas (or hydraulic stations using explosion-proof motors can be used.)

50下装弹簧柱50 bottoms mounted spring columns

1.采用一套装柱机，可以填装多根色谱柱 2.装柱时间短，无需二次拆装，避免传统色谱柱在拆装时柱床反弹而影响柱效 3.活塞头与柱床始终接触并保持装柱压力，避免了传统色谱柱长时间使用后柱床塌陷的问题，延长使用寿命。 4.特殊设计的柱底密封结构，保证良好的密封 5.特殊设计加工的强制分配及收集系统，可以保证色谱柱高性能 6.内壁表面粗糙度　Ra ≤0.2μm 7.内壁采用珩磨，抛光,加工工艺我公司生产的弹簧预紧色谱柱（SAC）相比其它厂家产品的优势在于： 1）采用气缸替代气动液压放大泵。其优势所有管路均为气压管路，除了色谱柱管内部压力，其它压力均不超过8bar，安全性更好；其次，只使用压缩空气作为动力来源，操作环境更清洁。 2）管路布局更为简洁。省去了气压转液压的所有零部件，一致性更好，操作空间更大更方便。 3）特殊设计的柱底密封结构，只用手拧紧即可实现密封。 4）特殊设计加工的分配方式，可以保证色谱柱的高柱效。 5）操作时间短，节省试剂。 1. With a set of column machines, multiple columns can be filled 2. The column loading time is short, and there is no need for secondary disassembly and assembly, which avoids the rebound of the column bed during the disassembly and assembly of the traditional chromatographic column and affects the column efficiency 3. The piston head is always in contact with the column bed and maintains the column loading pressure, which avoids the problem of column bed collapse after long-term use of the traditional chromatography column and prolongs the service life. 4. Specially designed column bottom sealing structure to ensure good sealing 5. Specially designed and processed forced distribution and collection system can ensure the high performance of the column 6. Inner wall surface roughness Ra ≤0.2μm 7. The inner wall adopts honing, polishing and processing technology The advantages of our spring preloaded column (SAC) compared with other manufacturers' products are: 1) Adopt pneumatic cylinder instead of pneumatic hydraulic amplification pump. Its advantages are that all the pipelines are pneumatic lines, except for the internal pressure of the chromatography column tube, the other pressures are not more than 8 bar, which is safer, and secondly, only compressed air is used as a power source, and the operating environment is cleaner. 2) The pipeline layout is more concise. All parts of pneumatic to hydraulic pressure are omitted, and the consistency is better, and the operation space is larger and more convenient. 3) Specially designed column bottom sealing structure, sealing can be achieved by only hand tightening. 4) The distribution method of specially designed processing can ensure the high column efficiency of the column. 5) Short operation time and saving reagents.

弹簧柱Spring columns

弹簧预紧色谱柱（SAC）是为高压制备色谱而研发的可自动填装色谱柱。其优点在于: 1）装柱时间短，无需二次拆装，所以可避免传统色谱柱在拆装时柱床反弹影响柱效。 2）活塞头与柱床始终接触并保持装柱压力，避免了传统色谱柱长时间使用后柱床塌陷的问题，延长使用寿命。 3）采用一套装柱机，可以填装多根色谱柱。 4）不使用电气零部件，可用于防爆区域。我公司生产的弹簧预紧色谱柱（SAC）的优势在于： 1）采用气缸替代气动液压放大泵。其优势所有管路均为气压管路，除了色谱柱管内部压力，其它压力均不超过8bar，安全性更好；其次，只使用压缩空气作为动力来源，操作环境更清洁。 2）管路布局更为简洁。省去了气压转液压的所有零部件，一致性更好，操作空间更大更方便。 3）特殊设计的柱底密封结构，只用手拧紧即可实现密封。 4）特殊设计加工的分配方式，可以保证色谱柱的高柱效。 5）操作时间短，节省试剂。柱管内径 30mm；50 mm 长度 650mm 内壁加工工艺珩磨，抛光内壁表面粗糙度 Ra≤0.4um 柱床高度 300mm 最小柱床高度 50mm 耐压 260bar 网板孔径 2um 材质 316L粉末烧结网板高压密封圈材质 PTFE 结构弹簧预紧V型密封圈活塞材质 316L 分配方式扇形连接进口/出口 1/16或者1/8管路所有与液体接触材质包括：316L，PTFE，PEEK Spring-loaded columns (SACs) are autopacked columns developed for high-pressure preparative chromatography. The advantages are: 1) The column loading time is short, and there is no need for secondary disassembly, so it can avoid the rebound of the column bed during the disassembly and assembly of the traditional chromatographic column, which can affect the column efficiency. 2) The piston head is always in contact with the column bed and maintains the column loading pressure, which avoids the problem of column bed collapse after long-term use of the traditional chromatographic column and prolongs the service life. 3) With a set of column machines, multiple columns can be filled. 4) No electrical parts are used, and can be used in explosion-proof areas. The advantages of our Spring Prepacked Columns (SACs) are: 1) Adopt pneumatic cylinder instead of pneumatic hydraulic amplification pump. Its advantages are that all the pipelines are pneumatic lines, except for the internal pressure of the chromatography column tube, the other pressures are not more than 8 bar, which is safer, and secondly, only compressed air is used as a power source, and the operating environment is cleaner. 2) The pipeline layout is more concise. All parts of pneumatic to hydraulic pressure are omitted, and the consistency is better, and the operation space is larger and more convenient. 3) Specially designed column bottom sealing structure, sealing can be achieved by only hand tightening. 4) The distribution method of specially designed processing can ensure the high column efficiency of the column. 5) Short operation time and saving reagents. Column tubes Inner diameter 30mm；50 mm length 650mm Inner wall processing technology Honing, polishing Inner wall surface roughnes Ra≤0.4um Column bed height 300mm Minimum bed height 50mm Pressure-resistant 260bar Stencil aperture 2um Material 316L powder sintered mesh plate High-pressure seals Material PTFE Structure Spring-loaded V-rings piston Material 316L Distribution sector connect Import/Export 1/16 or 1/8 tubing All materials that come into contact with liquids include: 316L, PTFE, PEEK
