特点Feature:

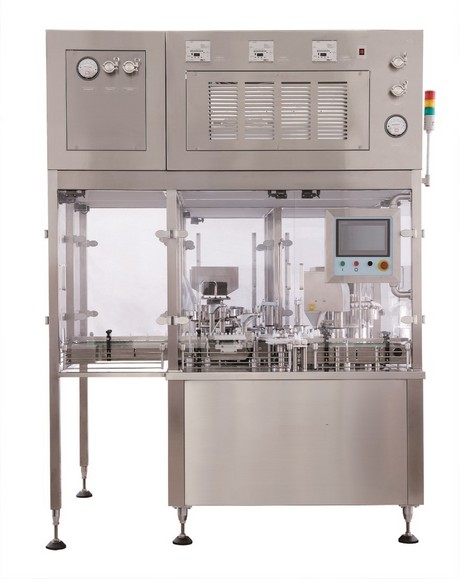

The machine is auto-liquid filling equipment combined with unscrambler, filling, plug inserting and cap screwing in one unit. 该机是集理瓶，灌装、插塞、旋盖于一体的液体自动灌装设备。
--Sensor will inspect the feeding bottle, and if the number of bottles is less than fixed amount, the filling machine will stop filling;
--Within rotating disc, sensor will inspect if there is a bottle, no bottle, no filling;
--Plugs should be inspected, otherwise, no plugging, no cap placing;
-- Finished filling and capping, the bottles will go through image sensor to detect if there is any defect, and the defected bottles will be rejected to rejection bin and the qualified bottles will be sent out to downstream machines through output conveyor belt. (Note: defected bottles including 3 kinds: no insert and no cap; with insert, no cap; crooked capping;)
——传感器检测进瓶，当进瓶子数少于固定数量时，灌装机停止灌装;
——在转盘内，传感器会检测是否有瓶、无瓶、不灌装;
—内塞传感器，无塞不加盖;
——灌装封盖完成后，经图像传感器检测是否有缺陷，不合格的瓶子将被退回到弃瓶仓，合格的瓶子通过输出输送带送到下游机器。(注:有缺陷的瓶有3种:无插、无盖;有插入，无帽;弯曲的限制。
优点advantage：
技术参数technical parameters
|
型号Model |
HG-100 |
HG-200 |
|
灌装量filling volume |
1-10ml |
|
|
产量 capacity |
Max. 100bottle/min |
Max. 200bottle/min |
|
灌装精度Filling accuracy |
±0. 1% |
|
|
气压Air pressure |
0.4-0.6 |
|
|
耗气量Air consumption |
0.1-0.5 |
|
|
功率Power |
5KW |
7KW |
