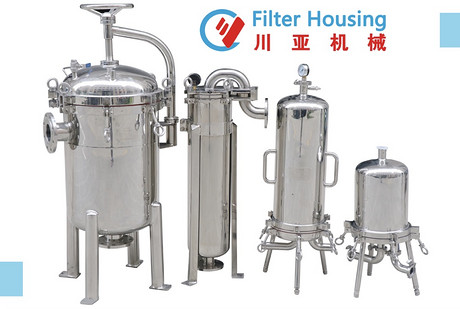

Cartridge filter housing
Complete range of housings to suit cartridge filtration.
• Available in 316L and 304 ss to suit all process requirements.
• Cartridge filter housings available in single and multiple cartridge configurations and lengths 10”, 20” and 30” cartridges.

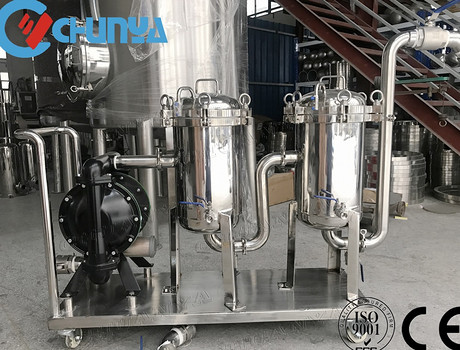

• Available complete with valving, pressure gauges and skid-mounted with positive displacement pumps and controls.
Application area
Pharmaceutical industry: compartment filtration of various antibiotics and other liquid medicines.
Food and beverage industry: filtration of alcohol, mineral water, and other drinking water.
Petroleum filtration industry: oilfield water injection.
Electronics industry: high-purity water post-filtration.
Chemical industry: filtration of various organic solvents, acids and alkali.

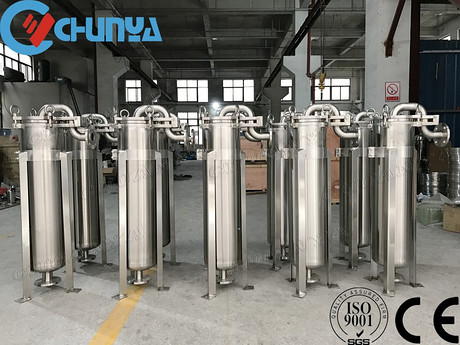

Bag filter housing
Bag filter housings are particularly useful for filtering large volumes or high viscosity liquids, which are composed of filter housing, filter bags, internal cage to
support bags, positive sealing arrangement. Easy open by Swing bolts friendly operation with minimal downtime for bag change-outs. Reduces downtime to
increase productivity and decrease operating costs. Material Construction : Stainless Steel 304 and 316L
Features of the bag filter housing :
High flow rates
High temperature & High pressure design are available
Wide range of bag size for choice 1# ,2# ,3# ,4#
Can be Single cavity housings or Multi-round.
Steam Jacket could be designed
Custom made service
The inlet design can be top entry or side entry
Applications of the bag filter housing :
Automotive
Food and Beverage
Chemical Processing
Paints, Inks, Resins and Coatings
Municipal Water Treatment
Industrial Water Treatment
Pharmaceutical
Solvents
Lenticular filter housing
Lenticular filter is suitable for 12 and 16 inch depth filter modules,The max operate pressure arrive 10bar. The lenticular filter housing is one kinds of depth
filter housing ,it is totally enclosed,which eliminates liquid loss due to leakage. ·Material in 316L stainless steel ,or 304SS , sanitary construction with polish
treatment
·Equipped with Support plate and backwash baffle plate
·Vent valve and drain included with the housing
·Suitable for 12 inch 1.8㎡ filter area ,16 inch 3.6㎡ filter area Filter modules
Lenticular filters are used in a broad range of applications from the filtration of syrup ,distilled spirits,wines ,beers,the clarification of fruit juices and water
Be used in the pharmaceutical ,cosmetic and chemical processing industries
Pre-filtration of juice concentrate
Polishing filtration of olive oil
Particle removal
Final filtration (germ removal )
Pre filtration prior to final membrane filters
As the depth filter ,it can be applied into the beer filtration (beer filter) and winery filtration (wine filter)
