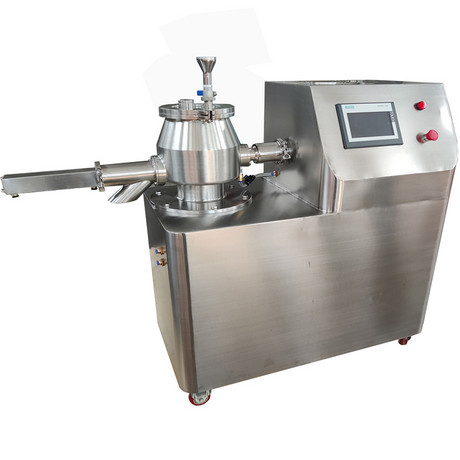

SHZ型湿法混合制粒机
SHZ Series High Speed Agitator
简介(Brief)：
The machine is made with stainless steel and mainly consists of mixing paddle, granulating blades and cylinder.
This vertical type drum with completely sealed driving shaft make it possible for water washing. During the production procedure, the entire cycle of dry mixing – wet mixing - making granules is finished in the drum, and finally the granules are produced into the automatic port. The design and processing follows GMP standard.
技术参数(Technical Specifications)：
|
型号Model |
SHZ-10 |
SHZ -50 |
SHZ -150 |
SHZ -200 |
SHZ -250 |
SHZ -300 |
|
容积 Volume（L） |
10 |
50 |
150 |
200 |
250 |
300 |
|
产量 Capacity(Kg/Batch) |
3 |
15 |
50 |
80 |
100 |
130 |
|
搅拌转速 Mix Speed（rpm） |
300/600 |
300/210 |
270/180 |
270/180 |
188/130 |
160/110 |
|
搅拌功率 Mix Power（Kw） |
1.5/2.2 |
4/5.5 |
9/11 |
11/14 |
11/14 |
11/14 |
|
切割功率 Granule Power（Kw） |
0.85/1.1 |
1.5/2.2 |
2.4/3 |
3.3/4 |
3.3/4 |
4.5/5.5 |
|
切割速度 Granule Speed（rpm） |
1500/3000 |
|||||
|
工作时间 Work Time（min） |
8-15 |
|||||
|
颗粒大小 Granule Size（Mesh） |
20-80 |
|||||
