首页制药产品大全制剂设备液体制剂设备水针剂机械 AMPOULE FILLING LINE

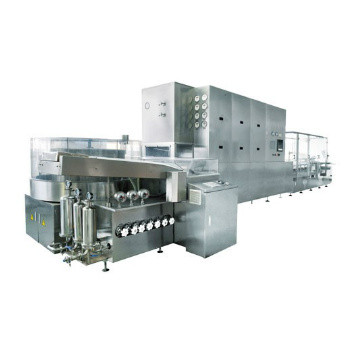

AMPOULE FILLING LINE

更新时间：2024-12-24

价格：面议

品牌：暂无

型号：暂无

立即询盘

产品详情

产品名称： AMPOULE FILLING LINE

产品分类：水针剂机械

产品关键词： AMPOULE FILLING LINE,制剂设备,水针剂机械

主要销售市场：中/南美洲,东欧,大洋洲,亚洲,中东,非洲

产品描述：

Application

It is a linked line, specially used for filling, drying/sterilizing, sealing of injectable glass ampoules.

The line consists of three main parts,

Washing machine
Depyrogenization tunnel
Fill & seal monoblock

1. Rotary Ampoule Washer

Rotary Ampoule Washer is specially designed for all kinds of ampoule bottle, vial and oral liquid bottle automatic cleaning. It adopts vertical rotary design and manipulator to clamp and turn over the bottle. The principle of ultrasonic cleaning and **-alternating-gas ejection flushing can meet the requirement of cleaning the bottle one by one.

STANDARD FEATURES

Machine stops and alarm arises in case of low temperature of WFI and/or recycled **.
Machine stops and alarm arises in case of low pressure of ** and/or air.
Current of ultrasonic generator is displayed. Should failure happens machine stops and alarm arises.
Pressure of ** and air is recorded in-line and is digitally displayed.
Ultrasonic power and ** temperature is recorded in line.
** drainage pipe is inclined to prevent residual ** backflow after machine is shut down.
** tank is designed with zero dead corners.

2. Depyrogenization Tunnel Dryer

Depyrogenization Tunnel Dryer is mainly used for drying and sterilizing with hot air, to eliminate pyrogens inside glassware like ampoule, vails, etc.

STANDARD FEATURES

PAO inspection function available
Negative pressure sealing arrangement
Real-time display and printout of temperature curve (dual sensor)
Adjustable baffle with scale and manual wheel
Auto air balance function (up to five modes)
Ultrasonic washing for mesh conveyor available
Differential pressure monitor and alarm function available
Day/Night dual working modes

3. Fill & Seal Monoblock

This machine is mainly used for filling and sealing of ampoules under sterile conditions. Ampoule is conveyed via conveyor belt to the in-feed worm and transferred by indexing wheel into filling station for filling and afterwards to sealing station for sealing by flames. Nitrogen gas purging provisions before filling and/or after-filling is available as options.

STANDARD BENEFITS

Compact design, very easy to operate and clean
Continuous linear type, PLC controlled operation, touch panel as HMI
Glass or ceramic pump as filling unit, no bottle no fill arrangement
Nitrogen gas purging provisions before filling and/or after-filling is available as options.
Rapid change-over of size parts
Auto counting of finished product
Class 100 laminar flow protective device comes in standard design (stainless steel finish)
Safety guard mounted on doors. Machine stops in case door is opened.

公司简介

江苏开元医药有限公司成立于2008年，总部位于江苏省南京市栖霞高新区-江苏生命科技园，现有员工500余人，全资子公司7家，是集生物医药研发、生产、贸易于一体的综合性生物医药国际化企业。主要产品覆盖医药中间体、原料药、成品药及医疗器械。从事仿制药一致性评价、改良新药和创新药开发、CRO和MAH等研发业务，拥有医药中间体、原料药、成品药等数个CDMO生产基地。公司年出口额超2亿美元，年销售额超15亿元，连续9年被中国医保商会授予“西成药出口十强企业”，连续6年跻身“中国医药国际化百强企业”。2017年公司成功当选为中国医药保健品进出口商会副会长单位。

注册资本：不愿意公开

企业规模（人）： 100至149

业务类型：制造商,代理商,贸易公司

成立日期： 2008年

年销售额：不愿意公开

主营产品类别：原料药,中间体,生物制品,天然提取物,药用辅料,合同外包、定制服务及咨询,制剂设备,医药包装机械

该公司其他产品

THREE DIMENSIONAL BLENDER

Description This 3-dimensional mixing motion quickly and efficiently produces a homogeneous substance regardless of specific weight of the substances being mixed. This makes it an ideal powder blender. Technical data model SBH-50 SBH-100 SBH-200 SBH-300 SBH-400 SBH--500 SBH-600 drum volume (m3) 60 130 250 380 480 600 700 max load (kg) 50 100 200 300 400 500 600 working load (kg) 25 50 100 150 200 250 300 shaft speed (RPM) 3-17 3-17 3-16 3-16 3-16 3-12 3-12 motor power (kw) 1.5 2.2 4 4 4 5.5 5.5 Other on request

SQUARE CONE BLENDER

Application It is a novel material mixer extensively used in the metallurgical, pharmaceutical, food, chemical, light and feed industries. This machine can mixer powder or granules very evenly, the mixed materials can reach the best effect. Working principle Materials are charged into a closed square-cone mixing barrel. The symmetrical axes of hopper and the axes of rotating shaft form an included angle. Materials with different constituents are making three dimensional space motions in the closed hopper and producing strong rolling, diffusion and contraction to achieve the best effect of mixing. Key benefits The whole machine features novel design and compact structure. The evenness of mixing reaches 99%, and the volume charge coefficient reaches 0.8. Low rotating height, smooth running, easy operation and reliable performance. Highly polished inner and outer surfaces of the barrel without dead corner, easy to discharge and clean with no cross contamination, conforming to the GMP requirement. Technical data model HF-300 HF-500 HF-1000 HF-1500 HF-2000 HF-3000 full volume (L) 300 500 1000 1500 2000 3000 useful volume (L) 240 400 800 1200 1600 2400 max load (kg) 150 250 500 750 1000 1500 shaft speed (RPM) 14 13 12 10 10 8 power (kw) 1.5 2.2 4 5.5 7.5 11 Other on request

V BLENDER

The V-Blender (also known as a twin shell blender) is one of the most commonly used tumbling blenders, which rely upon the action of gravity to cause the powder to cascade within a rotating vessel. The V-Blender is made of two hollow cylindrical shells joined at an angle of 75° to 90°. The blender container is mounted on trunnions to allow it to tumble. As the V-blender tumbles, the material continuously splits and recombines, with the mixing occurring as the material free-falls randomly inside the vessel. The repetitive converging and diverging motion of material combined with increased frictional contact between the material and the vessel's long, straight sides result in gentle yet homogenous blending.
