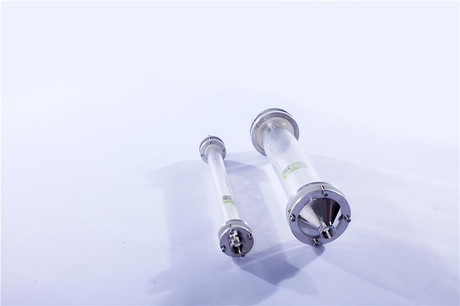

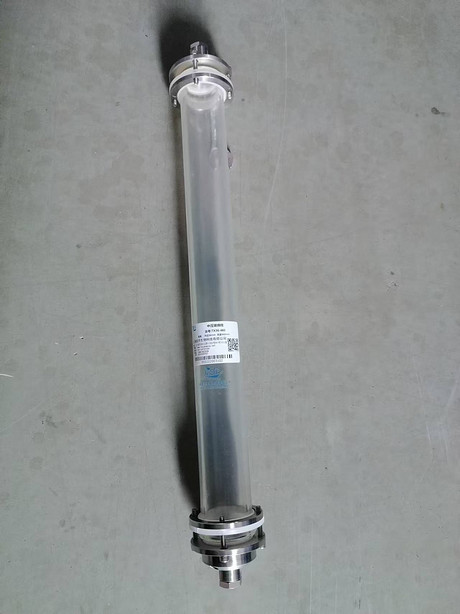

特点
耐压高，可以接在中压制备色谱和高压制备色谱，拓展仪器的使用范围
喇叭口柱头设计，使样品分配更均匀，可加大上样量，提高分离效率
喇叭口柱头可防止高速流动相对柱床的破坏
以内衬玻璃管的不锈钢夹套代替传统的六通阀定量环，有利于高浓度的样品的分离制备，彻底消除了高浓度样品阻塞阀接口的现象
法兰柱，操作者容易自己拆洗填料，极大的降低分离硬件成本
玻璃透明，可以使操作者直观了解天然提取物、色素等带有颜色样品的分离状况
| 不锈钢喇叭口中高压玻璃柱的型号、尺寸、操作压力对照表（填料密度按0.6g/ml计算） Stainless steel flared Medium-High pressure glass column model, size, pressure comparison table (packing material density is calculated according to 0.6/ml) | ||||||||||||||
| 内径/ID | 长度/Length | 100mm | 230mm | 310mm | 460mm | 920mm | 耐压pressure | 建议流速recommended flow velocity（ml/min） | ||||||
| 15mm | 货号/Item No. | TX15-100 | TX15-230 | TX15-310 | TX15-460 | TX15-920 | 40bar | 5-20 | 带三个支撑脚 With 3 supporting legs | |||||
| 装填量/Packing weight | 10.6g | 24g | 33g | 49g | 97g | |||||||||
| 26mm | 货号/Item No. | TX26-100 | TX26-230 | TX26-310 | TX26-460 | TX26-920 | 30bar | 20-70 | ||||||
| 装填量/Packing weight | 32g | 73g | 99g | 146g | 293g | |||||||||
| 36mm | 货号/Item No. | TX36-100 | TX36-230 | TX36-310 | TX36-460 | TX36-920 | 30bar | 45-135 | ||||||
| 装填量/Packing weight | 61g | 140g | 189g | 281g | 562g | |||||||||
| 49mm | 货号/Item No. | TX49-100 | TX49-230 | TX49-310 | TX49-460 | TX49-920 | 20bar | 80-200 | ||||||
| 装填量/Packing weight | 113g | 260g | 351g | 520g | 1040g | |||||||||
| 70mm | 货号/Item No. | TX70-100 | TX70-230 | TX70-310 | TX70-460 | TX70-920 | 15bar | 170-250 | 带三个支撑脚/拉丝杆 With 3 supporting legs /wire drawing rod | |||||
| 装填量/Packing weight | 231g | 531g | 715g | 1062g | 2123g | |||||||||
| 100mm | 货号/Item No. | TX100-100 | TX100-230 | TX100-310 | TX100-460 | TX100-920 | 10bar | 200-250 | ||||||
| 装填量/Packing weight | 471g | 1083g | 1460g | 2167g | 4333g | |||||||||
| 150mm | 货号/Item No. | TX150-100 | TX150-230 | TX150-310 | TX150-460 | TX150-920 | 10bar | 200-250 | ||||||
| 装填量/Packing weight | 1060g | 2437g | 3285g | 4875g | 9750g | |||||||||
| 上样柱以及装柱器对应的技术参数Technical Specifications for Sampling Column and Packing Reservoir | ||||||||||||||
| 名称Name | 订货号Order No. | 柱内径 ID(mm) | 长度Length(mm) | 耐压Pressure(bar) | 装填量Feeding volume | 备注remarks | ||||||||
| 上样柱 Sampling column | STX10-110 | 10 | 110 | 50-40 | 6.6g | 标准配置是上样柱和装柱器为外螺纹接口，可以将外螺纹直接旋转到层析柱内螺纹上面 ，如果需要管线直接串联，订货的时候需要备注订购串联包 Standard configure: sampling column and packing reservoir are both male thread coupling. Male screw can be screwed in chromatographic column’s internal/female thread directly. If needs to use pipeline to connect directly, please leave note (need pipeline connecting kit) when order. | ||||||||
| 上样柱 Sampling column | STX26-100 | 26 | 100 | 40-30 | 40.3g | |||||||||
| 上样柱 Sampling column | STX36-100 | 36 | 100 | 40-30 | 77.3g | |||||||||
| 上样柱 Sampling column | STX49-100 | 49 | 100 | 30-20 | 143.2g | |||||||||
| 上样柱 Sampling column | STX70-100 | 70 | 100 | 15 | 292.3g | |||||||||
| 装柱器 Column installation machine | ZTX49-100 | 49 | 100 | 30-20 | 143.2g | |||||||||
| 工具包Toolkits | SC10 | 该工具包可以将不同规格的层析柱通过管线接头链接起来 This toolkit can connect different types of chromatographic columns with pipeline adapter. | ||||||||||||
