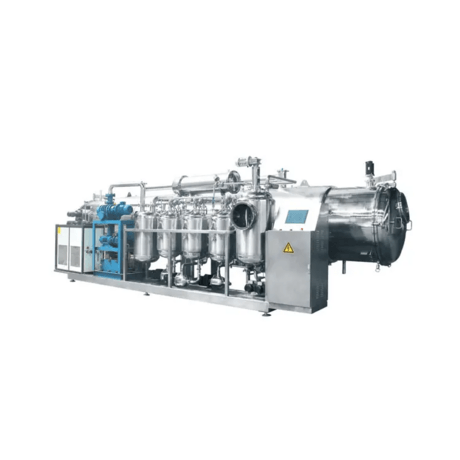

WXDG Vacuum & low temperature belt drying machine is a type of Dynamic automation drying equipment with feature of heating the liquid material with continuous feeding, continuous evaporation and continuous charge in vacuum environment. Machine is including the following units: Electric and steam system, Material feed and charging system, Heating system, Material moving system, Cooling and vacuum system, Belt guiding system, Shatter and discharge system, Basic machine and CIP automatic cleaning system. WXDG vacuum belt drying machine is widely used for drying of thermal sensitive material, such as Chinese Herb extract ointment, malt extract, instant granules, and has gained a good practical application in the field of food, biology and chemistry.
Specification: Water evaporation: (kg/h) sets 1~2、3~5、8~10、15~20、25~30、40~50、60~70、80~90、100~120、140~160、170kg/h Specifications can be designed and manufactured according to customer's requirements.
1. With functions of automatic batching, automatic feed, the feed rate is adjustable, the final concentration ointment density can reach to 1.3 and solid-liquid mixtures.
2. With vacuum degree on-line automatic adjustment function, dynamic vacuum degree can be arbitrarily set in the range 1000-5000 pa.
3. Have function of Online automatically adjust the heating temperature, the heating temperature can be set in the range of 45～135 ℃.
4. With continuous feeding and continuous discharge, Online crushing and grinding function, crushing level count up to 100 mesh.
5. Conveyor belt automatic online correction function, speed adjustable, drying time is up to 72 hours continuously.
6. The whole drying process realizes the pipe-lining and completely isolated from the external environment, to avoid heat pollution.
7. The whole drying process realizes automation control, reduce the labor costs, all process parameters have reversible search.
8. Use hot water closed-circuit circulation heating technology, greatly reduce the energy consumption, is only 1/5compare with the spray drier.
9. Equipped with a full set of online automatic cleaning system, can cleaning and drying of equipment fast and test the cleaning effect.
